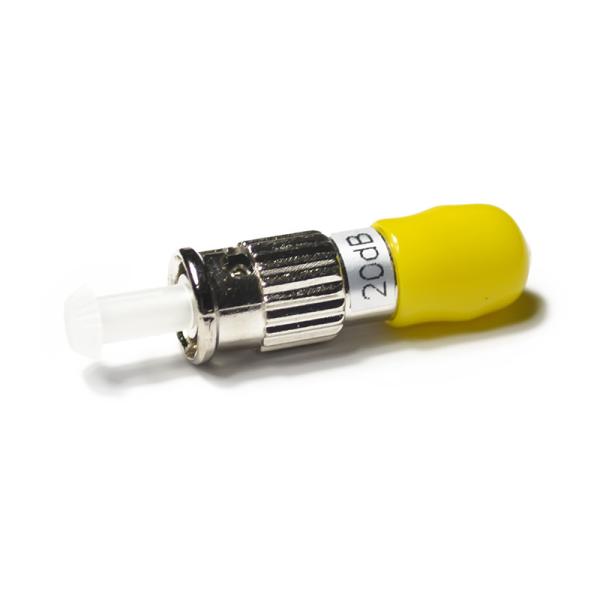

High Return Loss ST Fiber Optic Attenuator

Product Categories

SHENZHEN DYS FIBER OPTIC TECHNOLOGY CO.,LTD

Contact Now

Name: High Return Loss ST Fiber Optic Attenuator
Brand: DYS/OEM
Price: 1 USD

Place of Origin : Shenzhen（China）

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : ST

MOQ : Negotiable

Price : Negotiable

Packaging Details : 1pcs in 1 packign or Customized

Delivery Time : 2-5 work days

Payment Terms : T/T or L/C,Western Union

Supply Ability : 500000PCS / Month

Name : Fiber Optic Adapter

Insert-pull test : 1000 times

Mode : Single-mode

Attenuation value : 1~ 25 dB

Operation wavelength : 1310nm and 1550nm(SM)

Telecordia standard : GR-910-COR

Contact Now

High Return Loss ST Fiber Optic Attenuator Plug Type / Female-Male

Features

·High return loss

·Simple structure

·Max operation power(1W)

·Low wavelength relativity

·Low polarization related loss

Applications

·Fiber optical distributing frame

·Fiber optical network system

·High speed fiber optical transmission system

·CATV system

·Long distance DWDM system

·Optical add-drop multiplexers(OADM)

Specifications

Attenuation value	1~ 25 dB
Attenuation precision	≤5dB±0.3dB, ≥10dB±1dB, ≥10dB±10％
Return loss	PC≥55dB APC≥60dB
Operation wavelength	1310nm and 1550nm(SM)
Polarization loss	≥0.1dB
Operation temperature	-40℃~ +75℃
Storage temperature	-40℃~ +85℃
Temperature(Unencapsulation)	95％RH Apply Telecordia standard(GR-910-CORE)
