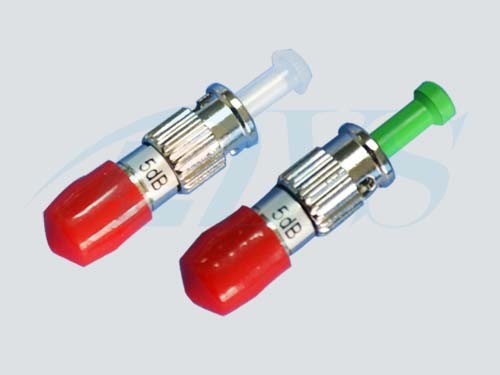

ST Female - Male Plug Fiber Optic Attenuator For Long Distance DWDM System

Name: ST Female Male Plug Fiber Optic Attenuator For Long Distance DWDM System
Brand: DYS/OEM
Price: 1 USD

Place of Origin : Shenzhen（China）

Brand Name : DYS/OEM

Certification : IS09001-2015.ROHS

Model Number : LC

MOQ : Negotiable

Price : Negotiable

Packaging Details : Individual box or according to customer's request

Delivery Time : 3-5 work days

Payment Terms : L/C,T/T

Supply Ability : 500000PCS / Month

Contact Now

ST Female - Male Plug Fiber Optic Attenuator For Long Distance DWDM System

Quick Details:

Model Number: FC fiber optic attenuator

Wavelengths: 1240~1620nm

Connector Type: FC/SC/LC/ST

Return Loss: ≥45dB(UPC) ≥55dB(UPC)

PDL: ≤ 0.1dB

Applications

•Fiber Optical distributing frame

•Fiber Optical network system

•High speed fiber optical transmission system

•CATV system

•Long distance DWDM system

•Optical add-drop multiplexers(OADM)

Features

•High return loss

•Simple structure

•Max operation power(1W)

•Low wavelength relativity

•Low polarization related loss

Specifications

Item
Attenuation Value	1~25dB
Attenuation Precision	≤5dB±0.3dB, ≥10dB±1dB, ≥10dB±10%
Return Loss	PC≥55dB; APC≥60dB
Operation Wavelength	1310nm and 1550nm(SM)
Polarization Loss	≥0.1dB
Operation Temperature	-40℃~ +75℃
Storage Temperature	-40℃~ +85℃
Temperature(Un-encapsulation)	95%RH Apply Telecordia Standard(GR-910-CORE)

ST Female - Male Plug Fiber Optic Attenuator For Long Distance DWDM System

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, productsexported to Europe and the United States and Southeast Asian countries.

Certificate of qualification

Our Team
