Double Ceramic Splice 4 / 6 Core Fiber Optic Splice Sleeve

Name: Double Ceramic Splice 4 6 Core Fiber Optic Splice Sleeve
Brand: DYS/OEM
Price: 1 USD

China Double Ceramic Splice 4 / 6 Core Fiber Optic Splice Sleeve wholesale

Place of Origin : Shenzhen（China）

Brand Name : DYS/OEM

Certification : RoHS

Model Number : Ceramic Splice Sleeve(Double Round)

Capacity : 4core-12core

Size : 4cm,6cm or customized

MOQ : Negotiable

Packaging Details : 100pcs in 1 packign or Customized

Delivery Time : 3days

Payment Terms : T/T or L/C,Western Union

Supply Ability : 500000PCS / Month

Price : Negotiable

Name : Fiber Optic Splice Sleeves

Applications : Reconstruct the fiber coating

Features : Good moisture

Usage : Ensure good optical transmission properties

Features1 : Waterproof, RoHS compliant

Contact Now

Double Ceramic Splice 4 / 6Core Fiber Optic Splice Sleeves

Quick Details:

Brand Name: DYS

Model Number: Heat-shrinkable

Type:Double :4 / 6 Core

Length: 60mm

Steel OD: 1.5mm

Materails: plastic and steel

Applications

·Use the enhanced wire, hot-melt tube and cross-linked polyolefin composition
·Reconstruct the fiber coating
·Junction to provide a good mechanical strength
·Ensure good optical transmission properties

Features
·Good moisture and environmental performance
·Transparent casing can be connected better before contraction
·Easily operating to the optical fiber
·Waterproof, RoHS compliant

Specifications

Fiber Volume	Ceramic(W1Xh1)mm	Inner tube(W2Xh2)mm	Outer tube(L)mm	OpticSplice Protector(D)mm	Packgae(pcs)
Single Ceramic Rod
4Core	3.0x1.45	2.3x1.1	40	4.1	50
6Core	3.0x1.45	2.3x1.1	40	4.1	50
8Core	4.0x2.0	3.5x2.1	40	5.7	50
12Core	4.0x2.2	4.0x2.3	40	6.2	50
Double Ceramic Rod
4Core	3.0x1.55	2.3x1.1	40	5.0	50
6Core	3.0x1.455	2.3x1.1	40	5.0	50
8Core	4.0x2.0	3.5x2.1	40	7.2	50
12Core	4.0x2.2	4.0x2.3	40	7.7	50

Double Ceramic Splice 4 / 6 Core Fiber Optic Splice Sleeve

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

Product Tags:

fiber splice sleeves

fiber optic sleeve

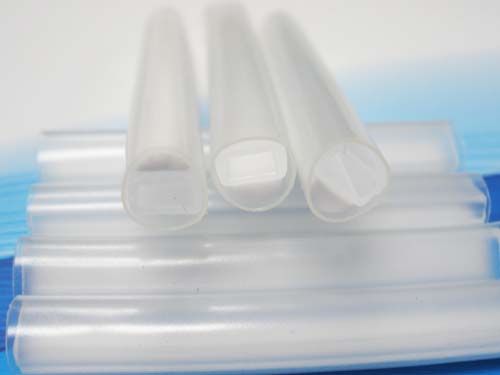

Double Ceramic Splice 4 / 6 Core Fiber Optic Splice Sleeve Images
