Place of Origin : Shenzhen(China)
Brand Name : DYS/OEM
Certification : RoHS
Model Number : Ceramic Splice Sleeve(Double Round)
Capacity : 4core-12core
Size : 4cm,6cm or customized
MOQ : Negotiable
Packaging Details : 100pcs in 1 packign or Customized
Delivery Time : 3days
Payment Terms : T/T or L/C,Western Union
Supply Ability : 500000PCS / Month
Name : Fiber Optic Splice Sleeves
Applications : Reconstruct the fiber coating
Features : Good moisture
Usage : Ensure good optical transmission properties
Features1 : Waterproof, RoHS compliant
Price : Negotiable
Applications
·Use the enhanced wire, hot-melt tube and cross-linked polyolefin composition
·Reconstruct the fiber coating
·Junction to provide a good mechanical strength
·Ensure good optical transmission properties
Features
·Good moisture and environmental performance
·Transparent casing can be connected better before contraction
·Easily operating to the optical fiber
·Waterproof, RoHS compliant
Specifications
Fiber Volume |
Ceramic(W1Xh1)mm |
Inner tube(W2Xh2)mm |
Outer tube(L)mm |
Optic Splice Protector(D)mm |
Packgae(pcs) |
Single Ceramic Rod |
|||||
4Core |
3.0x1.45 |
2.3x1.1 |
40 |
4.1 |
50 |
6Core |
3.0x1.45 |
2.3x1.1 |
40 |
4.1 |
50 |
8Core |
4.0x2.0 |
3.5x2.1 |
40 |
5.7 |
50 |
12Core |
4.0x2.2 |
4.0x2.3 |
40 |
6.2 |
50 |
Double Ceramic Rod |
|||||
4Core |
3.0x1.55 |
2.3x1.1 |
40 |
5.0 |
50 |
6Core |
3.0x1.455 |
2.3x1.1 |
40 |
5.0 |
50 |
8Core |
4.0x2.0 |
3.5x2.1 |
40 |
7.2 |
50 |
12Core |
4.0x2.2 |
4.0x2.3 |
40 |
7.7 |
50 |

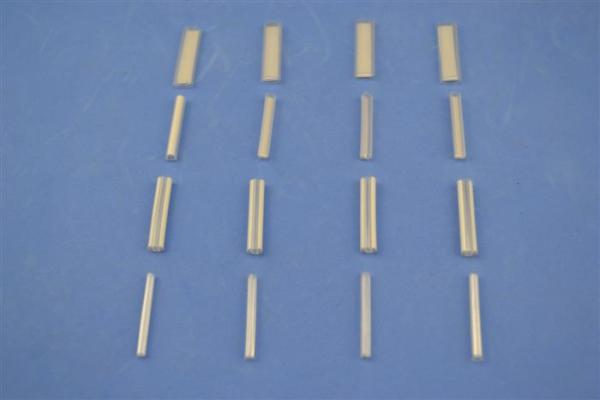

Splice Protection Fiber Optic Splice Sleeves Images |
